Samsung Galaxy S8 Not Outputting HDMI Video Through the Plugable USB-C Triple Display Docking Station with USB Power Delivery

VESA

Product Review
Reviewed Products

Reviewed Products

Galaxy S8

by Samsung
by Samsung

Buy Now on Amazon

The Samsung Galaxy S8 supports DisplayPort 1.2 over its USB Type-C connector but we found that it has problems outputting HDMI video through the Plugable USB-C Triple Display Docking Station with USB Power Delivery.

We connected the Samsung Galaxy S8 to the Plugable USB-C Triple Display Docking Station with USB Power Delivery using a USB 3.1 Type-C to Type-C cable.

However, when we tried to connect either of the two HDMI connectors of the Plugable USB-C Triple Display Docking Station with USB Power Delivery to the LG B6 OLED 4K HDR Smart TV - 65" Class using a HDMI cable, no video was outputted to the TV.

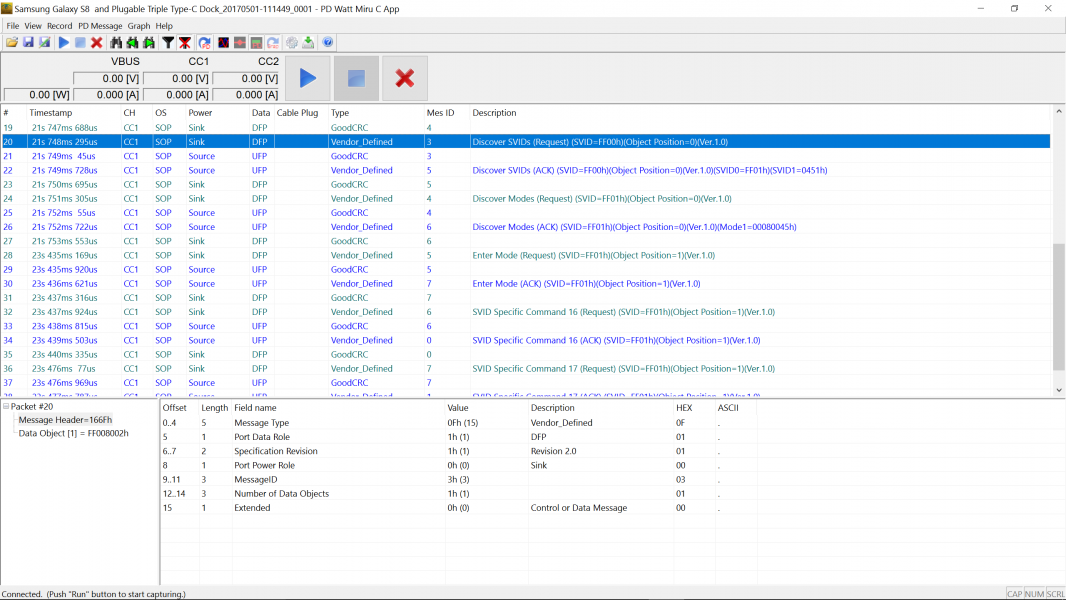

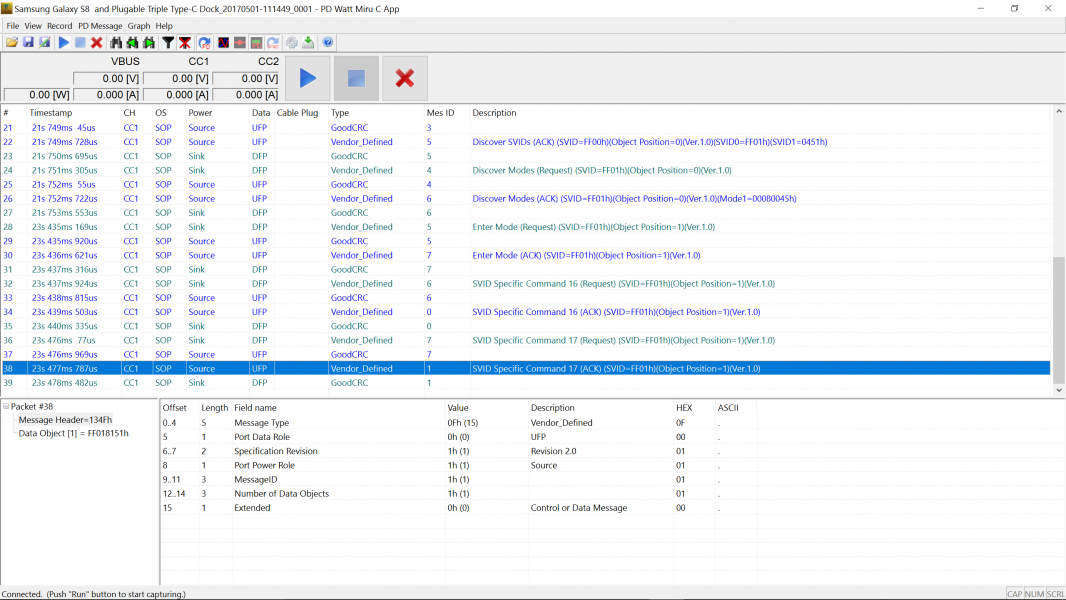

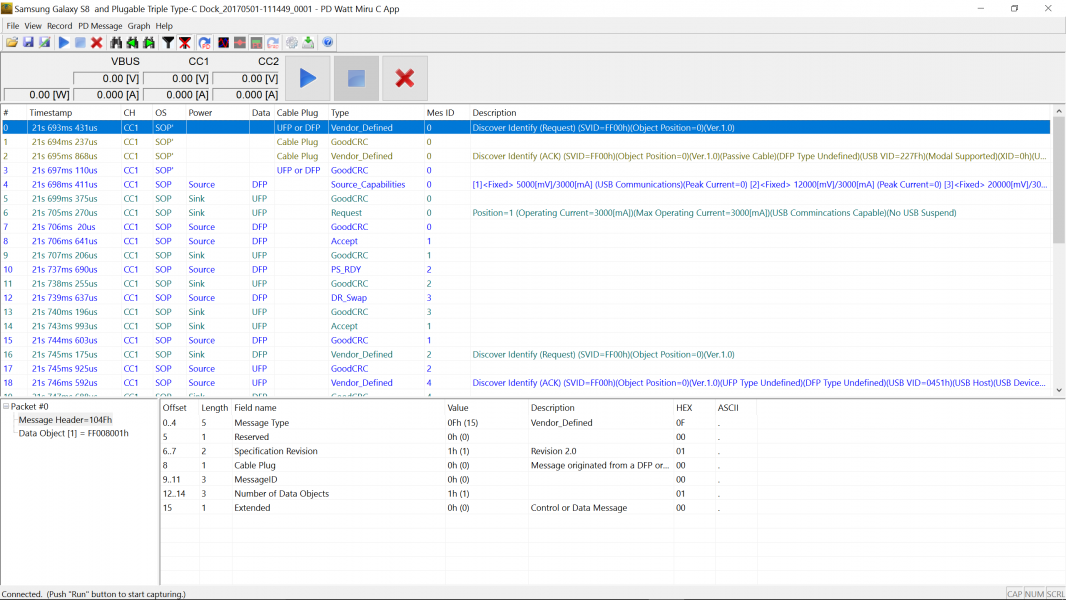

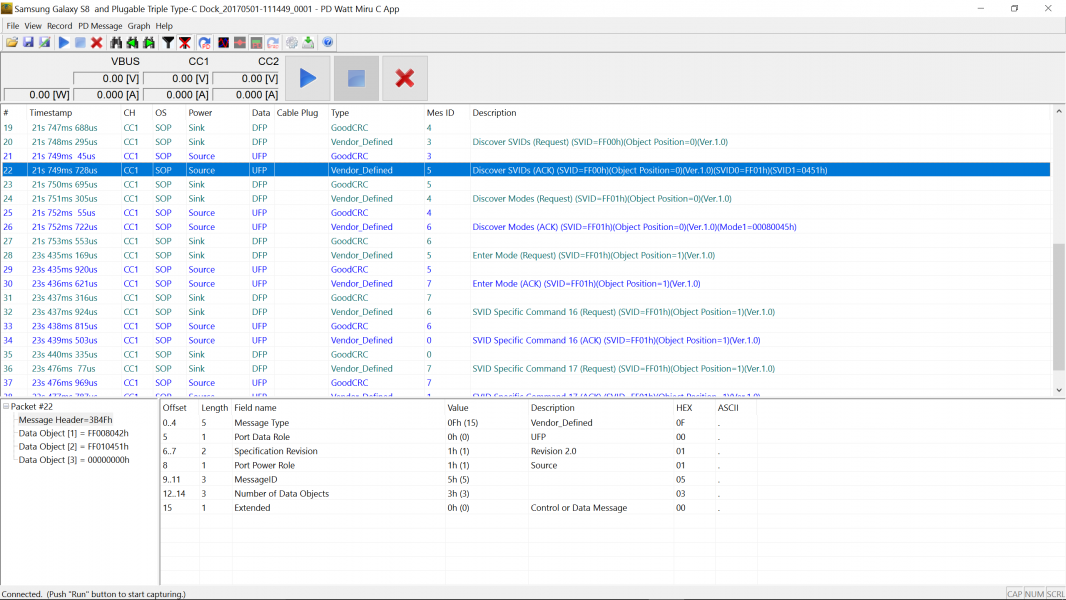

We can see there are USB Power Delivery protocol transactions between the Samsung Galaxy S8 and the Plugable USB-C Triple Display Docking Station with USB Power Delivery to negotiate going into DisplayPort Alternate Mode. However, in the end there seems to be a problem with the Samsung Galaxy S8's DisplayPort output working with the Plugable USB-C Triple Display Docking Station with USB Power Delivery's DisplayPort to HDMI converter.

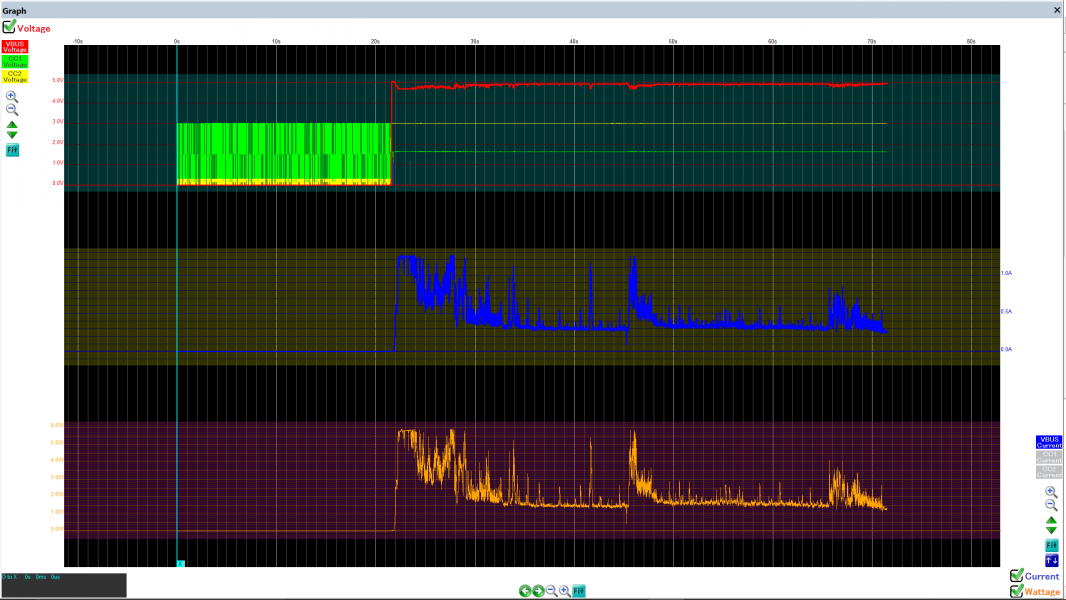

We can observe from the USB Power Delivery transactions that the Samsung Galaxy S8 is requesting 5 volts @ 3 amps from the Plugable USB-C Triple Display Docking Station with USB Power Delivery, although with the Samsung Galaxy S8 being fully charged, it wasn't drawing much current when the below oscilloscope screenshot was taken.
